Latest revision as of 11:55, 1 April 2026
Contents
1 Wiring - Spirit RX7 and Spirit µRX
You can optionally connect Spirit RX receivers with Spirit units. Wiring is simple and allows the best integration through our own Spirit RX protocol.

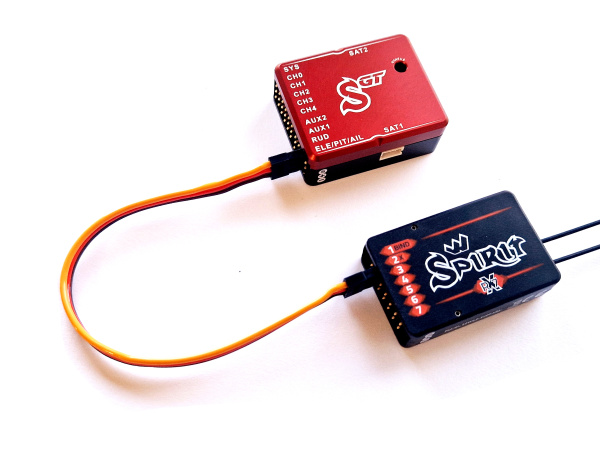

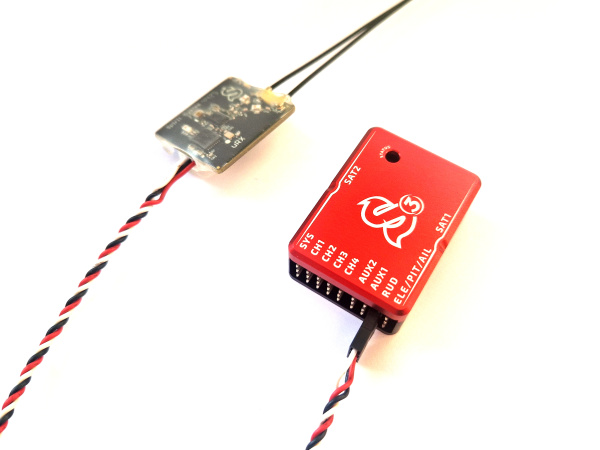

1.1 Spirit 3, Spirit GT
Spirit 3 and Spirit GT units require only a direct cable between RUD port and port 2 X of the Wave receiver.

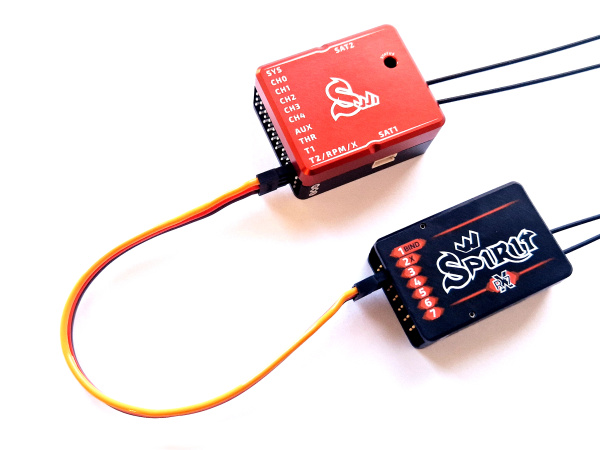

1.2 Spirit W1, Spirit W3
Spirit W1 and Spirit W3 units require only a direct cable between T1 port and port 2 X of the Wave receiver.

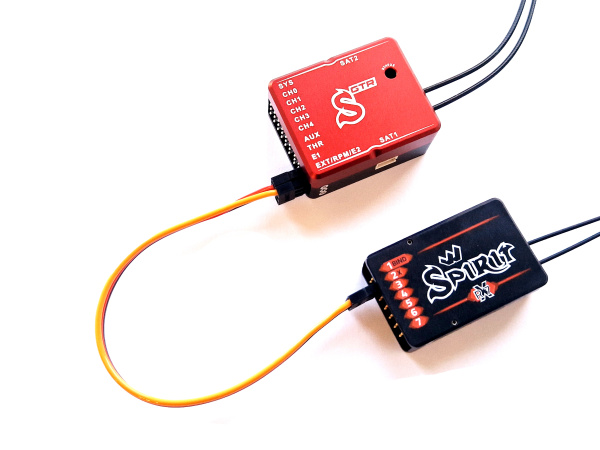

1.3 Spirit 1, Spirit 2, Spirit Pro, Spirit RS, Spirit GTR, µSpirit
You will need JETI Integration Cable connected at the RUD port (Red and Brown wires) + AIL pin (Orange wire) at the Spirit side, while second end of the cable must be connected at the port 2 X of the Wave receiver.
For Spirit µRX it is needed to modify original connector manually, so that signal wire is separated and connected at the AIL pin, respectively E2 pin.
2 Spirit Settings
In order for both devices to communicate you need to set Receiver Type to Spirit RX option in the Spirit units.
